300Mhz Broadband 10 KM 20 KM RF Wireless Most Lowest High Power Drone Camera Market Price Map Transmitter Military
Long range wireless digital cofdm video transmitter and receiver is a digital NLOS or LOS remote HD COFDM wireless video transmitter with HD COFDM receiver. Wireless digital COFDM video transmitter and receiver SG-HD25 transmits data,including audio video, over a NLOS long range.
Digital Video Transmitter and Receiver is with the core technology 4th generation mobile communication COFDM module and low delay full hd 1080P technique.COFDM video transmitter can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles (NLOS) with carrier velocity greater than 450 km / h.
this is a new COFDM digital transmitter receiver with Frequency-division duplexing (FDD) technology, designed with dual-mode RF transceiver system which operate at different carrier frequencies ideal for long range communication in network solution. The FDD technique uses different frequency bands for video radio sending and receiving with no interference.

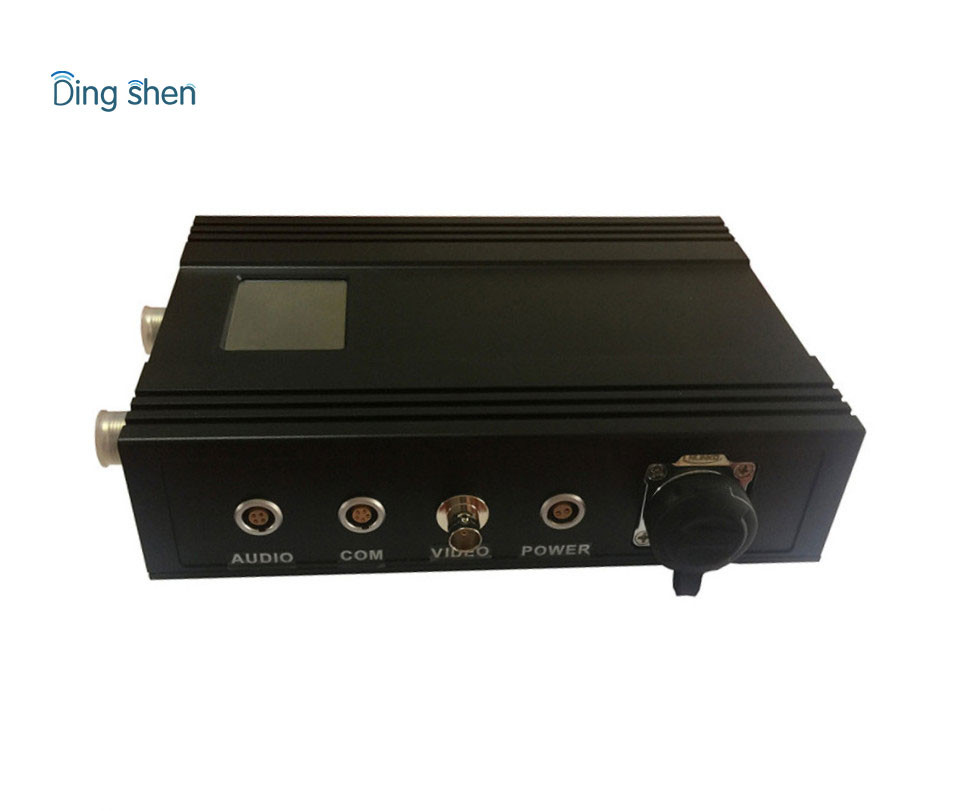

Transmitter parameter:
| Frequency | 300-900Mhz or other frequency customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Transfer rate | 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M |
| RF power | 2~5W adjustable |
| Video input | HDMI,CVBS,AHD,SDI (option) |
| Video coding | MPEG-4/H.264 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Transmission distance | 100km LOS from air to ground; 3-5km NLOS on ground station |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 220*150*60mm |
| Weight | 1362g |
| Box colour | Black |
| Antenna port | N type |
This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.
Receiver parameter:
| Frequency | 300-900Mhz or other frequency customized |
| Bandwidth | 2/3/4/5/6/7/8MHz (option) |
| RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
| RF input impedance | 50Ω |
| RF input type | N type |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(adjustable) |
| FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
| Carrier | 2k |
| Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
| Video coding | MPEG-4/H.264 |
| Screen | 4:3 16:9 |
| Video resolution | 1920*1080P/I@4Mhz |
| Audio output | Stereo unbalance 300/ 200mv |
| AV output | 2 Audio output + 2 Video output; SDI |
| Working voltage | AC220V/DC12V <1A |
| Working Temperature | -20℃~+50℃ |
| Dimension | 483*300*44mm |
| Weight | 1.5kg |
Ding Shen is specialized in COFDM, TDD-COFDM and Analog wireless video transmission products for over 10 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
