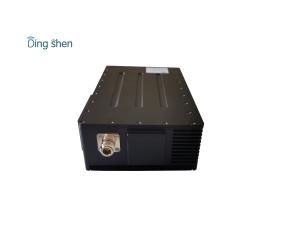

Mobile Vehicle Analog Wireless Transmitter COFDM For Outdoor Transmission 3km NLOS

Product Categories

Shenzhen dingshen Industrial Co., Ltd

Contact Now

Brand Name : Ding Shen

Model Number : DS-HDT20W

Place of Origin : Guangdong,china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 220*140*66mm

Certification : CE/FCC

Modulate : COFDM

Frequency : 300-900Mhz or other frequency customized

Video input : HDMI/SDI; CVBS

Video resolution : 1920*1080P/I@60fps; 1280*720P/I@60fps

Product name : n Wireless Audio Video Transmitterc&Receiver With AES128 Bits

Contact Now

Long Range Transmitter 200km Drone COFDM Video Downlink Wireless Video Transmission

This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of

COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight)

transmission with DVD quality video. The transmitter is compact size with strong power amplifier for

long range transmission. Good heat resistant with two cooling fans. Be safety with AES128/256bits.

Can work well in fast-moving transmission.

Transmitter parameter:

Modulate	COFDM
Working voltage	DC12V
Working current	≤6A@DC12V
RF bandwidth	2/4/6/8MHz (adjustable)
Frequency	300-900Mhz or other frequency customized
Output power	10-20W adjustable
Video input	HDMI/SDI; CVBS
Data input (option)	RS232/TTL, up to 115200bps
Video resolution	19201080P/I@60fps; 1280720P/I@60fps
Video coding	MPEG-2/H.264/H265
Video rate	512Kbps-16Mbps (adjustable)
Encryption	AES 128 bits
AV input	1Vp-p, 75Ω. Left and right channel
Video system	PAL/NTSC
Power flatness	Full band ≤1.5dB
CNR	≥25dBc@48dBm
Second harmonic	≥60dBc
CBER	<2.0E-4
VBER	<1.0E-7
MER	32dB
Carrier	2k 4k 8k
Constellation	QPSK,16QAM,64QAM (option)
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval	1/32, 1/16, 1/8, 1/4 (option)
Working Temperature	-25°C~55°C
Dimension	22014066mm
Weight	2.5kg

Receiver parameter:

Frequency	300-900MHz or other frequency customized
Bandwidth	2/3/4/5/6/7/8MHz (option)
RF input level	-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance	50Ω
RF input type	N type
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(adjustable)
FEC	1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier	2k
Guard Interval	1/32,1/16,1/8,1/4(adjustable)
Video coding	MPEG-2/H.265
Screen	4:3 16:9
Video resolution	1080P@4MHz
Audio output	Stereo unbalance 300/ 200mv
AV output	2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage	AC220V/DC12V <1A
working temperature	-20℃~+50℃
Dimension	48026045(1U chassis)
Weight	1.5kg

Mobile Vehicle Analog Wireless Transmitter COFDM For Outdoor Transmission 3km NLOS
