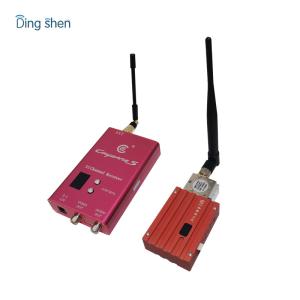

20km LOS FPV Video Transmitter with 6 Channels 8 Watt for Drone 1.2GHz
Description:
DS-A8 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment.
The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10 or so, if the raising of the high gain directional antenna, increased to 15km LOS away, and 20km LOS from air to ground.
And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
Specification:
| Voltage | DC 12V |
| Current | 700mA |
| Frequency | 1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz) |
| Number of channels | 6CHs |
| Transmit Power | 8000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 5~10KM LOS |
| Overall Configuration | Transmitter, AV cable, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 200g |
| Dimensions (L * W * H) | 95x50x20mm |
Our Service
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. 5 engineers provide professional system design and construction;
6.Good prices and Military grade quality with 17 years experience in COFDM field.
